ALMR 600

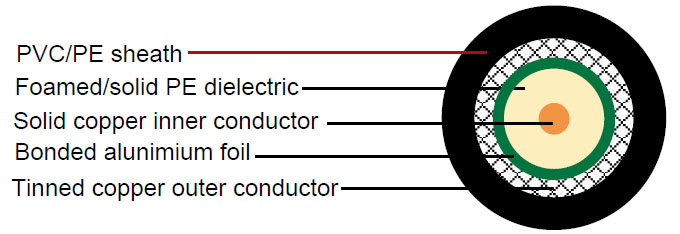

Construction :

  • Inner conductor Solid copper Φ4.47 mm
    Dielectric Foam /Solid PE Φ11.56 mm
    Shield Bonded aluminium foil Φ11.71 mm
    Outer conductor Tinned copper braid Φ12.50 mm
    Sheath PVC/PE Φ14.99 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76.8 pF/m
    Velocity of propagation 87%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 1.7 Ohm/Km
    Outer conductor resistance 3.9 Ohm/Km
    Operating temperature range -40°C - +85 °C
    Min.bending radius 75 mm

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    30 1.4 0.4
    50 1.8 0.5
    150 3.2 1.0
    220 3.9 1.2
    450 5.6 1.7
    900 8.2 2.5
    1500 10.9 3.3
    1800 12.1 3.7
    2000 12.8 3.9
    2500 14.5 4.4
    3000 15.7 4.8
    5800 23.8 7.3
